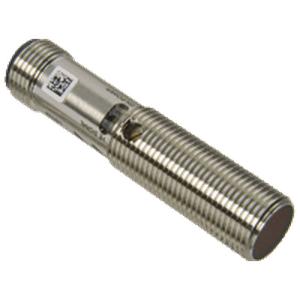

Pepperl Fuchs OBR2500-12GM40-E4-V1 Photoelectric Sensor
The Pepperl Fuchs OBR2500-12GM40-E4-V1 Photoelectric Sensor offers a 0 ... 2500 mm detection range, LED light source, and 4-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR2500-12GM40-E4-V1 |
Pepperl Fuchs OBR2500-12GM40-E4-V1 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 2500 mm |
| Reflector distance | 50 ... 2500 mm |
| Threshold detection range | 3000 mm |
| Reference target | H50 reflector |
| Light source | LED |
| Light type | red , 640 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 150 mm at a distance of 2500 mm |
| Opening angle | approx. 3.5 Β° |
| Optical face | frontal |
| Control elements | sensitivity adjustment |
| Operating voltage | 10 ... 30 V DC , class 2 |
| Ripple | 10 % |
| No-load supply current | β€ 15 mA |
| Switching type | light/dark on electrically switchable |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 2 V |
| Switching frequency | β€ 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -30 ... 60 Β°C (-22 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
| Mass | approx. 15 g |
| Cable length | - |
