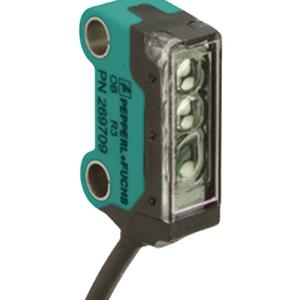

Pepperl Fuchs OBR2000-R3-E3-P-L Photoelectric Sensor
The Pepperl Fuchs OBR2000-R3-E3-P-L Photoelectric Sensor offers a 0 ... 2 m detection range, laser diode light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR2000-R3-E3-P-L |
Pepperl Fuchs OBR2000-R3-E3-P-L Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 2 m |
| Reflector distance | 40 ... 2000 mm |
| Threshold detection range | 2.3 m |
| Reference target | H40 reflector |
| Light source | laser diode |
| Light type | modulated visible red light , 680 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 35 mm at a distance of 2000 mm |
| Opening angle | approx. 0.5 ยฐ |
| Optical face | frontal |
| Control elements | - |
| Operating voltage | 12 ... 24 V |
| Ripple | - |
| No-load supply current | < 10 mA |
| Switching type | NC contact / light on |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 50 mA , resistive load |
| Voltage drop | โค 1.5 V DC |
| Switching frequency | approx. 2 kHz |
| Response time | 250 ยตs |
| Ambient temperature | -20 ... 60 ยฐC (-4 ... 140 ยฐF) |
| Storage temperature | -30 ... 70 ยฐC (-22 ... 158 ยฐF) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | approx. 20 g |
| Cable length | 2 m |
