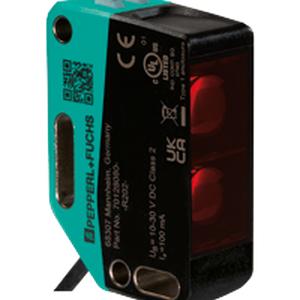

Pepperl Fuchs OBR17M-R202-E2-0,3M-V1 Photoelectric Sensor

Name: Pepperl Fuchs OBR17M-R202-E2-0,3M-V1
Brand: Pepperl Fuchs
SKU: OBR17M-R202-E2-0,3M-V1
Rating: 4.4 (4 reviews)

The Pepperl Fuchs OBR17M-R202-E2-0,3M-V1 Photoelectric Sensor offers a 0 ... 17 m detection range, LED light source, and 300 mm fixed cable with M12 x 1, 4-pin connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.

Datasheet

Brand	Pepperl Fuchs
Product Type	Photoelectric Sensor
Model Number	OBR17M-R202-E2-0,3M-V1

Pepperl Fuchs OBR17M-R202-E2-0,3M-V1 Photoelectric Sensor – Technical Specifications

Specification	Value
Effective detection range	0 ... 17 m
Reflector distance	0.02 ... 17 m
Threshold detection range	20 m
Reference target	H85-2 reflector
Light source	LED
Light type	modulated visible red light
Polarization filter	yes
Diameter of the light spot	approx. 500 mm at a distance of 17 m
Opening angle	2 °
Optical face	-
Operating voltage	10 ... 30 V DC
Ripple	max. 10 %
No-load supply current	< 30 mA at 24 V Operating voltage
Switching type	The default setting is: Q - Pin4: PNP normally open / dark-on
Signal output	1 PNP, short-circuit protected, reverse polarity protected, open collector
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Voltage drop	≤ 1.5 V DC
Switching frequency	1000 Hz
Response time	0.5 ms
Ambient temperature	-30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation-20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP67
Connection	300 mm fixed cable with M12 x 1, 4-pin connector
Mass	approx. 70 g
Cable length	0.3 m
