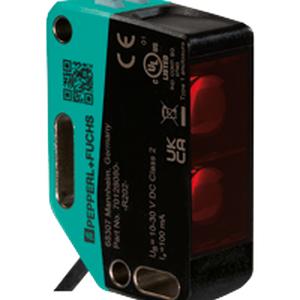

Pepperl Fuchs OBR17M-R202-E2 Photoelectric Sensor
The Pepperl Fuchs OBR17M-R202-E2 Photoelectric Sensor offers a 0 ... 17 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR17M-R202-E2 |
Pepperl Fuchs OBR17M-R202-E2 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 17 m |
| Reflector distance | 0.02 ... 17 m |
| Threshold detection range | 20 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 500 mm at a distance of 17 m |
| Opening angle | 2 ยฐ |
| Optical face | - |
| Control elements | - |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 30 mA at 24 V Operating voltage |
| Switching type | Q - BK: PNP normally open / dark-on |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | โค 1.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -30 ... 60 ยฐC (-22 ... 140 ยฐF) , cable, fixed installation-20 ... 60 ยฐC (-4 ... 140 ยฐF) , movable cable not appropriate for conveyor chains |
| Storage temperature | -40 ... 70 ยฐC (-40 ... 158 ยฐF) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | approx. 80 g |
| Cable length | 2 m |
