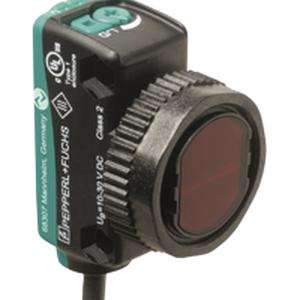

Pepperl Fuchs OBR12M-R103-2EP-IO-0,3M-V1-L Photoelectric Sensor
The Pepperl Fuchs OBR12M-R103-2EP-IO-0,3M-V1-L Photoelectric Sensor offers a 0 ... 12 m detection range, laser diode light source, and 300 mm fixed cable with M12 x 1, 4-pin connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR12M-R103-2EP-IO-0,3M-V1-L |
Pepperl Fuchs OBR12M-R103-2EP-IO-0,3M-V1-L Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 12 m |
| Reflector distance | 0.25 ... 12 m |
| Threshold detection range | 15 m |
| Reference target | H50 reflector |
| Light source | laser diode |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 30 mm at a distance of 12 m |
| Opening angle | approx. 0.3 Β° |
| Optical face | - |
| Control elements | sensitivity adjustment |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA at 24 V supply voltage |
| Switching type | The switching type of the sensor is adjustable. The default setting is:C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 2000 Hz |
| Response time | 250 Β΅s |
| Ambient temperature | -40 ... 60 Β°C (-40 ... 140 Β°F) , cable, fixed installation-25 ... 60 Β°C (-13 ... 140 Β°F) , movable cable not appropriate for conveyor chains |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | 300 mm fixed cable with M12 x 1, 4-pin connector |
| Mass | approx. 23 g |
| Cable length | 0.3 m |
