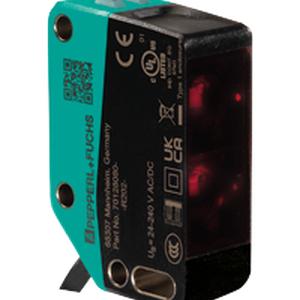

Home Products Photoelectric Sensor Pepperl Fuchs OBR10M-R202-K6-4R Pepperl Fuchs OBR10M-R202-K6-4R Photoelectric Sensor The Pepperl Fuchs OBR10M-R202-K6-4R Photoelectric Sensor offers a 0 ... 10 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number OBR10M-R202-K6-4R
Pepperl Fuchs OBR10M-R202-K6-4R Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 10 m Reflector distance 0.05 ... 10 m Threshold detection range 12 m Reference target H85-2 reflector Light source LED Light type modulated visible red light Polarization filter yes Diameter of the light spot approx. 300 mm at a distance of 10 m Opening angle 2 ° Optical face - Operating voltage 24 ... 240 V AC/DC Ripple - No-load supply current < 30 mA at 24 V Operating voltage Switching type Q - BK: normally-open / dark-on/Q - GY: normally-closed / light-onC - WH: Common Signal output Relay, 1 alternator Switching voltage max. 240 V AC/DC Switching current max. 2.5 A , see section characteristic curve Voltage drop - Switching frequency 25 Hz Response time ≤ 20 ms Ambient temperature -30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation-20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature -40 ... 70 °C (-40 ... 158 °F) Degree of protection IP67 Connection 2 m fixed cable Mass approx. 120 g Cable length 2 m
