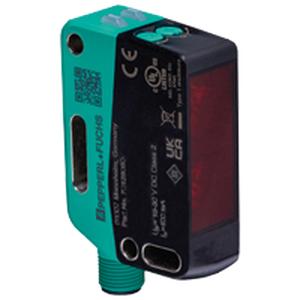

Pepperl Fuchs OBR10M-R202-2EP-V1-4R Photoelectric Sensor
The Pepperl Fuchs OBR10M-R202-2EP-V1-4R Photoelectric Sensor offers a 0 ... 10 m detection range, LED light source, and 4-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR10M-R202-2EP-V1-4R |
Pepperl Fuchs OBR10M-R202-2EP-V1-4R Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 10 m |
| Reflector distance | 0.05 ... 10 m |
| Threshold detection range | 12 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 300 mm at a distance of 10 m |
| Opening angle | 2 Β° |
| Optical face | - |
| Control elements | sensitivity adjustment |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 30 mA at 24 V Operating voltage |
| Switching type | The switching type of the sensor is adjustable. The default setting is:Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -30 ... 60 Β°C (-22 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
| Mass | approx. 55 g |
| Cable length | - |
