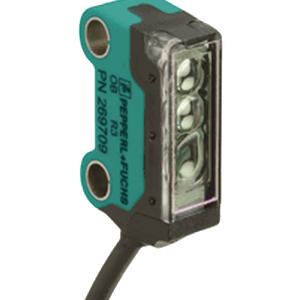

Pepperl Fuchs OBR1000-R3-P1-0,2M-V3-P Photoelectric Sensor
The Pepperl Fuchs OBR1000-R3-P1-0,2M-V3-P Photoelectric Sensor offers a 0 ... 1 m detection range, LED light source, and 200 mm fixed cable with 3-pin, M8 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR1000-R3-P1-0,2M-V3-P |
Pepperl Fuchs OBR1000-R3-P1-0,2M-V3-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 1 m |
| Reflector distance | 40 ... 1000 mm |
| Threshold detection range | 1.4 m |
| Reference target | H40 reflector |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 60 mm at a distance of 800 mm |
| Opening angle | approx. 2 Β° |
| Optical face | frontal |
| Control elements | - |
| Operating voltage | 10 ... 30 V DC , class 2 |
| Ripple | - |
| No-load supply current | < 10 mA |
| Switching type | The default setting is: PNP normally-open/dark-on ; NPN normally-closed/light-on |
| Signal output | Push-pull output, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 50 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | approx. 800 Hz |
| Response time | 600 Β΅s |
| Ambient temperature | -25 ... 60 Β°C (-13 ... 140 Β°F) |
| Storage temperature | -30 ... 70 Β°C (-22 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 200 mm fixed cable with 3-pin, M8 x 1 connector |
| Mass | approx. 20 g |
| Cable length | 200 mm |
