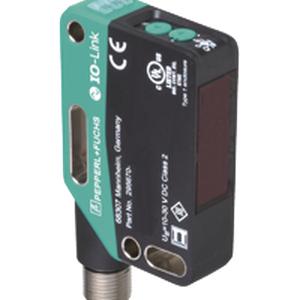

Pepperl Fuchs OBG8000-R201-2EP-IO-V1 Photoelectric Sensor
The Pepperl Fuchs OBG8000-R201-2EP-IO-V1 Photoelectric Sensor offers a 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" detection range, LED light source, and 4-pin, M12 x 1 connector, 90° rotatable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBG8000-R201-2EP-IO-V1 |
Pepperl Fuchs OBG8000-R201-2EP-IO-V1 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Reflector distance | 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N" |
| Threshold detection range | 9 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m |
| Opening angle | approx. 5 ° |
| Optical face | - |
| Control elements | 5-step rotary switch for operating modes selection |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA at 24 V supply voltage |
| Switching type | The switching type of the sensor is adjustable. The default setting is:C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | 4-pin, M12 x 1 connector, 90° rotatable |
| Mass | approx. 47 g |
| Cable length | 0.3 m |
