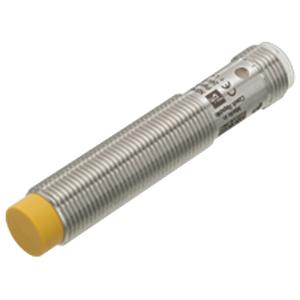

Pepperl Fuchs NSN4-12GM45-2E2-V1-S2D2 Proximity Sensor
The Pepperl Fuchs NSN4-12GM45-2E2-V1-S2D2 Proximity Sensor offers a 4 mm operating distance, 4-wire, PNP, 2 x normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NSN4-12GM45-2E2-V1-S2D2 |
Pepperl Fuchs NSN4-12GM45-2E2-V1-S2D2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | 2 x normally open (NO) |
| Output type | 4-wire, PNP |
| Rated operating distance | 4 mm |
| Installation | non-flush |
| Assured operating distance | 0 ... 3.24 mm |
| Switching frequency | 0 ... 30 Hz |
| Hysteresis | typ. 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP68 / IP69 |
| Mass | 18 g |
