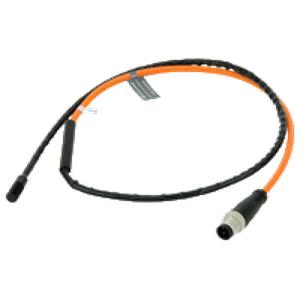

Pepperl Fuchs NMB3-8GM23-Z4-C-850MM-V1 Proximity Sensor
The Pepperl Fuchs NMB3-8GM23-Z4-C-850MM-V1 Proximity Sensor offers a 3 mm operating distance, 2-wire, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NMB3-8GM23-Z4-C-850MM-V1 |
Pepperl Fuchs NMB3-8GM23-Z4-C-850MM-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 2-wire |
| Rated operating distance | 3 mm |
| Installation | flush |
| Assured operating distance | 0 ... 2.43 mm |
| Switching frequency | 5 Hz |
| Hysteresis | 5 ... 15 typ. 10 % |
| Reverse polarity protection | reverse polarity-conductive |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, red |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | fixed cable with plug |
| Housing material | Xylan coated - Stainless steel 1.4305 / AISI 303 |
| Sensing face | Xylan coated - Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 |
| Mass | 60 g |
