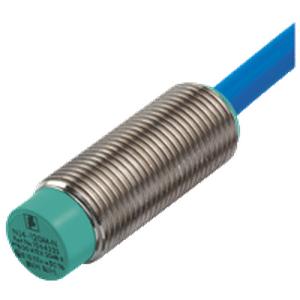

Pepperl Fuchs NJ4-12GM-N-5M Proximity Sensor
The Pepperl Fuchs NJ4-12GM-N-5M Proximity Sensor offers a 4 mm operating distance, 2-wire, Normally closed (NC), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NJ4-12GM-N-5M |
Pepperl Fuchs NJ4-12GM-N-5M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 2-wire |
| Rated operating distance | 4 mm |
| Installation | non-flush |
| Assured operating distance | 0 ... 3.24 mm |
| Nominal voltage | 8.2 V (Riapprox. 1 kΞ©) |
| Switching frequency | 0 ... 1500 Hz |
| Hysteresis | 3 % |
| Ambient temperature | -25 ... 100 Β°C (-13 ... 212 Β°F) |
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
