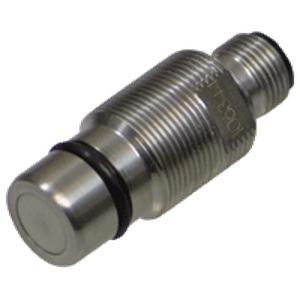

Pepperl Fuchs NJ1,5-18GM-N-D-V1 Proximity Sensor
The Pepperl Fuchs NJ1,5-18GM-N-D-V1 Proximity Sensor offers a 1.5 mm operating distance, 2-wire, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NJ1,5-18GM-N-D-V1 |
Pepperl Fuchs NJ1,5-18GM-N-D-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 2-wire |
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Assured operating distance | 0 ... 1.22 mm |
| Nominal voltage | 8.2 V (Riapprox. 1 kΞ©) |
| Switching frequency | 0 ... 400 Hz |
| Hysteresis | typ. % |
| Ambient temperature | -25 ... 85 Β°C (-13 ... 185 Β°F) |
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Ceramic |
| Degree of protection | IP66 / IP67 |
| Mass | 41.81 g |
