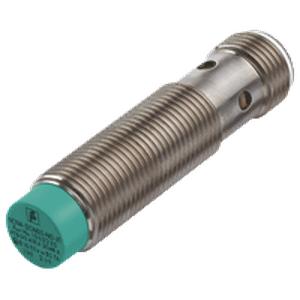

Pepperl Fuchs NCN4-12GM35-N0-V1 Proximity Sensor
The Pepperl Fuchs NCN4-12GM35-N0-V1 Proximity Sensor offers a 4 mm operating distance, 2-wire, Normally closed (NC), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NCN4-12GM35-N0-V1 |
Pepperl Fuchs NCN4-12GM35-N0-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 2-wire |
| Rated operating distance | 4 mm |
| Installation | non-flush |
| Assured operating distance | 0 ... 3.24 mm |
| Switching frequency | 0 ... 800 Hz |
| Hysteresis | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | yes |
| Switching state indicator | Multihole-LED, yellow |
| Ambient temperature | -25 ... 100 Β°C (-13 ... 212 Β°F) |
| Storage temperature | -40 ... 100 Β°C (-40 ... 212 Β°F) |
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP66 / IP67 |
