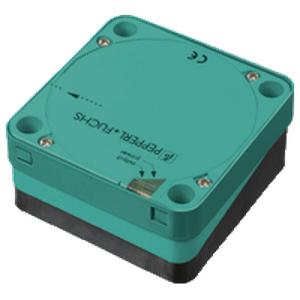

Pepperl Fuchs NCB50-FP-A2-P1-V1 Proximity Sensor
The Pepperl Fuchs NCB50-FP-A2-P1-V1 Proximity Sensor offers a 50 mm operating distance, 4-wire, PNP, complementary, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NCB50-FP-A2-P1-V1 |
Pepperl Fuchs NCB50-FP-A2-P1-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | complementary |
| Output type | 4-wire, PNP |
| Rated operating distance | 50 mm |
| Installation | flush |
| Assured operating distance | 0 ... 40.5 mm |
| Switching frequency | 0 ... 80 Hz |
| Hysteresis | typ. 3 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -25 ... 85 Β°C (-13 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP68 |
