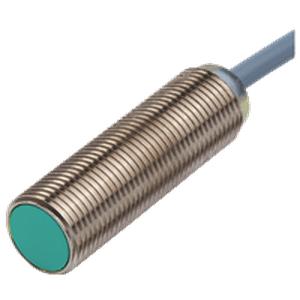

Pepperl Fuchs NCB2-12GM40-Z0-10M Proximity Sensor
The Pepperl Fuchs NCB2-12GM40-Z0-10M Proximity Sensor offers a 2 mm operating distance, 2-wire, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NCB2-12GM40-Z0-10M |
Pepperl Fuchs NCB2-12GM40-Z0-10M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 2-wire |
| Rated operating distance | 2 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.62 mm |
| Operating voltage | 5 ... 60 V |
| Switching frequency | 0 ... 800 Hz |
| Hysteresis | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | pulsing |
| Switching state indicator | all direction LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 159 g |
