If youβre not fully sure about NCB15-8GM50-Z1-V3, taking a closer look at Omron Proximity Sensors, P&F Sensors and P&F Photoelectric Sensor often helps compare reliability, cost, and availability.

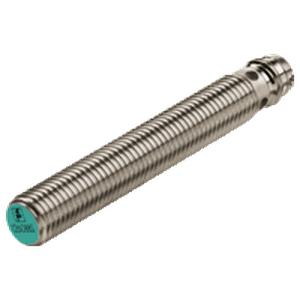

Pepperl Fuchs NCB1,5-8GM50-Z1-V3 Proximity Sensor
The Pepperl Fuchs NCB1,5-8GM50-Z1-V3 Proximity Sensor offers a 1.5 mm operating distance, 2-wire, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NCB1,5-8GM50-Z1-V3 |
Pepperl Fuchs NCB1,5-8GM50-Z1-V3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 2-wire |
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.21 mm |
| Operating voltage | 5 ... 60 V |
| Switching frequency | 0 ... 1200 Hz |
| Hysteresis | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | LCP |
| Degree of protection | IP67 |
