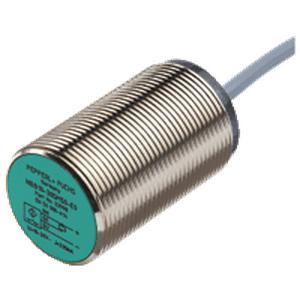

Home Products Proximity Sensor Pepperl Fuchs NCB15-30GM50-Z5 Pepperl Fuchs NCB15-30GM50-Z5 Proximity Sensor The Pepperl Fuchs NCB15-30GM50-Z5 Proximity Sensor offers a 15 mm operating distance, 2-wire, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Type Proximity Sensor Model Number NCB15-30GM50-Z5
Pepperl Fuchs NCB15-30GM50-Z5 Proximity Sensor – Technical Specifications Specification Value Switching function Normally closed (NC) Output type 2-wire Rated operating distance 15 mm Installation flush Assured operating distance 0 ... 12 mm Switching frequency 500 Hz Hysteresis - Reverse polarity protection reverse polarity-conductive Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Storage temperature -25 ... 85 °C (-13 ... 185 °F) Connection type cable Housing material brass, nickel-plated Sensing face PBT Degree of protection IP67
