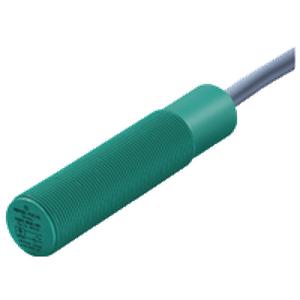

Pepperl Fuchs NBN8-18GK60-E2-5M Proximity Sensor
The Pepperl Fuchs NBN8-18GK60-E2-5M Proximity Sensor offers a 8 mm operating distance, 3-wire, PNP, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBN8-18GK60-E2-5M |
Pepperl Fuchs NBN8-18GK60-E2-5M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 8 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 6.48 mm |
| Operating voltage | 10 ... 30 V |
| Switching frequency | 0 ... 500 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | cable PVC , 5 m |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP68 / IP69K |
