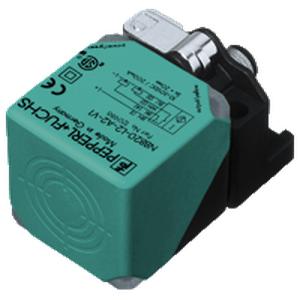

Pepperl Fuchs NBN40-L2-Z5-V1 Proximity Sensor
The Pepperl Fuchs NBN40-L2-Z5-V1 Proximity Sensor offers a 40 mm operating distance, 2-wire, Normally closed (NC), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBN40-L2-Z5-V1 |
Pepperl Fuchs NBN40-L2-Z5-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 2-wire |
| Rated operating distance | 40 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 32.4 mm |
| Operating voltage | 3.8 ... 30 V DC |
| Switching frequency | 0 ... 30 Hz |
| Hysteresis | typ. 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -25 ... 85 Β°C (-13 ... 185 Β°F) |
| Connection type | Connector plug |
| Housing material | PA |
| Sensing face | PA |
| Degree of protection | IP69K |
| Mass | 153 g |
