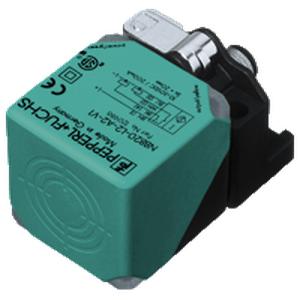

NBN40-L2-E2-V1: Pepperl Fuchs Inductive Sensors
Technical Specifications of Pepperl Fuchs Inductive Sensors NBN40-L2-E2-V1:
| Spec | Value |
|---|
| Rated operating distance | 40 mm |
| Installation | non-flush |
| Output type | 3-wire, PNP |
| Connection type | Connector plug |
Pepperl Fuchs Inductive Sensors NBN40-L2-E2-V1 Technical Specifications
| Specification | Value |
|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 40 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 32.4 mm |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | 0 ... 180 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug |
| Housing material | PA |
| Sensing face | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 130 g |
