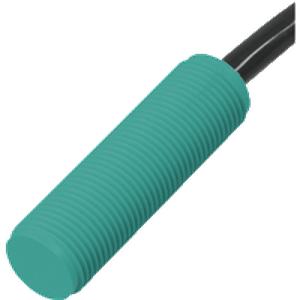

Home Products Proximity Sensor Pepperl Fuchs NBN4-12GK50-E0 Pepperl Fuchs NBN4-12GK50-E0 Proximity Sensor The Pepperl Fuchs NBN4-12GK50-E0 Proximity Sensor offers a 4 mm operating distance, 3-wire, NPN, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Type Proximity Sensor Model Number NBN4-12GK50-E0
Pepperl Fuchs NBN4-12GK50-E0 Proximity Sensor β Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire, NPN Rated operating distance 4 mm Installation non-flush Output polarity DC Assured operating distance 0 ... 3.24 mm Operating voltage 10 ... 30 V Switching frequency 0 ... 1200 Hz Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -25 ... 70 Β°C (-13 ... 158 Β°F) Connection type cable Housing material PBT Sensing face PBT Degree of protection IP68 / IP69K
