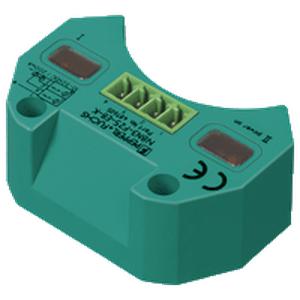

Pepperl Fuchs NBN3-F25F-E8-Y41365 Proximity Sensor
The Pepperl Fuchs NBN3-F25F-E8-Y41365 Proximity Sensor offers a 3 mm operating distance, 3-wire, PNP, 2 x normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBN3-F25F-E8-Y41365 |
Pepperl Fuchs NBN3-F25F-E8-Y41365 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | 2 x normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 3 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 2.43 mm |
| Operating voltage | 10 ... 30 V |
| Switching frequency | 0 ... 500 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | MINI-COMBICON |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP20 |
