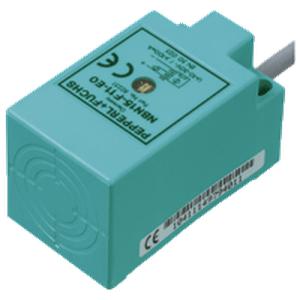

Pepperl Fuchs NBN15-F11-E2 Proximity Sensor
The Pepperl Fuchs NBN15-F11-E2 Proximity Sensor offers a 15 mm operating distance, 3-wire, PNP, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBN15-F11-E2 |
Pepperl Fuchs NBN15-F11-E2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 15 mm |
| Installation | non-flush |
| Assured operating distance | 0 ... 12.15 mm |
| Switching frequency | 0 ... 150 Hz |
| Hysteresis | typ. 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | cable |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
