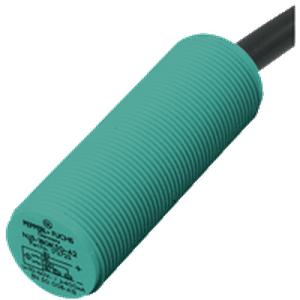

Home Products Proximity Sensor Pepperl Fuchs NBN12-18GK50-E2-M Pepperl Fuchs NBN12-18GK50-E2-M Proximity Sensor The Pepperl Fuchs NBN12-18GK50-E2-M Proximity Sensor offers a 12 mm operating distance, 3-wire, PNP, Normally open (NO), output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Type Proximity Sensor Model Number NBN12-18GK50-E2-M
Pepperl Fuchs NBN12-18GK50-E2-M Proximity Sensor – Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire, PNP Rated operating distance 12 mm Installation non-flush Output polarity DC Assured operating distance 0 ... 9.72 mm Operating voltage 5 ... 60 V Switching frequency 0 ... 1500 Hz Hysteresis type 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -40 ... 85 °C (-40 ... 185 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Connection type cable Housing material PBT Sensing face PBT Degree of protection IP68 / IP69K Mass 120 g
