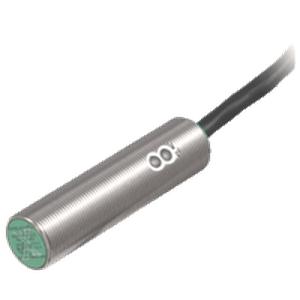

Pepperl Fuchs NBB8-18GM60-UO Proximity Sensor
The Pepperl Fuchs NBB8-18GM60-UO Proximity Sensor offers a 8 mm operating distance, 3-wire, NPN, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB8-18GM60-UO |
Pepperl Fuchs NBB8-18GM60-UO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 3-wire, NPN |
| Rated operating distance | 8 mm |
| Installation | flush |
| Output polarity | AC/DC |
| Switching frequency | 30 Hz |
| Hysteresis | 3 ... 15 % typ. 5 % |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 176 g |
