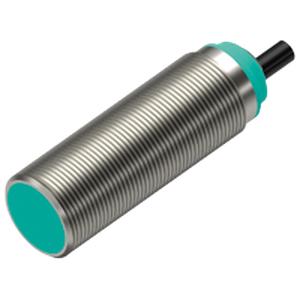

Home Products Proximity Sensor Pepperl Fuchs NBB8-18GM50-A0 Pepperl Fuchs NBB8-18GM50-A0 Proximity Sensor The Pepperl Fuchs NBB8-18GM50-A0 Proximity Sensor offers a 8 mm operating distance, 4-wire, NPN, complementary, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Type Proximity Sensor Model Number NBB8-18GM50-A0
Pepperl Fuchs NBB8-18GM50-A0 Proximity Sensor β Technical Specifications Specification Value Switching function complementary Output type 4-wire, NPN Rated operating distance 8 mm Installation flush Output polarity DC Assured operating distance 0 ... 6.48 mm Operating voltage 5 ... 36 V Switching frequency 0 ... 1350 Hz Hysteresis typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Switching state indicator LED, yellow Ambient temperature -40 ... 85 Β°C (-40 ... 185 Β°F) Storage temperature -40 ... 85 Β°C (-40 ... 185 Β°F) Connection type cable Housing material brass , white bronze coated Sensing face PBT , green Degree of protection IP65 / IP66 / IP67 / IP68 Mass 117 g Tightening torque 0 ... 30 Nm
