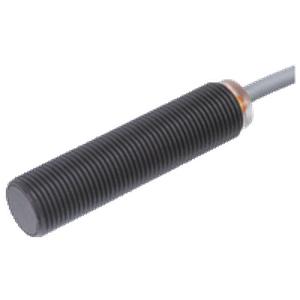

Pepperl Fuchs NBB2-12GM50-E0-C-V1 Proximity Sensor
The Pepperl Fuchs NBB2-12GM50-E0-C-V1 Proximity Sensor offers a 2 mm operating distance, 3-wire, NPN, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB2-12GM50-E0-C-V1 |
Pepperl Fuchs NBB2-12GM50-E0-C-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, NPN |
| Rated operating distance | 2 mm |
| Installation | flush |
| Assured operating distance | 0 ... 1.62 mm |
| Switching frequency | 0 ... 1500 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | Multihole-LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | Brass, PTFE coated |
| Sensing face | PPS |
| Degree of protection | IP67 |
