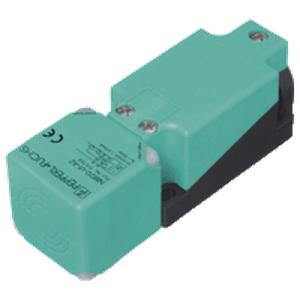

Pepperl Fuchs NBB15-U1-A2-M Proximity Sensor
The Pepperl Fuchs NBB15-U1-A2-M Proximity Sensor offers a 15 mm operating distance, 4-wire, PNP, complementary, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB15-U1-A2-M |
Pepperl Fuchs NBB15-U1-A2-M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | complementary |
| Output type | 4-wire, PNP |
| Rated operating distance | 15 mm |
| Installation | flush |
| Assured operating distance | 0 ... 12.15 mm |
| Switching frequency | 0 ... 200 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | screw terminals |
| Housing material | PA/metal with epoxy powder coating |
| Sensing face | PA-GF35 |
| Degree of protection | IP68 / IP69K |
| Mass | 225 g |
