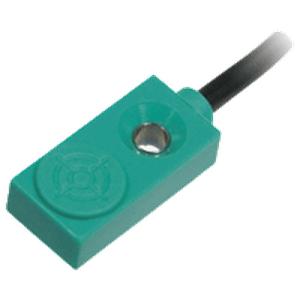

Pepperl Fuchs NBB1,5-F79-E2-5M: Inductive Sensors
Technical Specifications of Pepperl Fuchs Inductive Sensors NBB1,5-F79-E2-5M:
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Output type | 3-wire |
| Connection type | cable PVC , 5 m |
Pepperl Fuchs Inductive Sensors NBB1,5-F79-E2-5M Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire |
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Assured operating distance | 0 ... 1.215 mm |
| Actual operating distance | - |
| Reduction factor rAl | 0.3 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.7 |
| Nominal voltage | - |
| Switching frequency | 0 ... 1200 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | - |
| Short-circuit protection | pulsing |
| Current Consumption | - |
| Switching state indicator | - |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | - |
| Connection type | cable PVC , 5 m |
| Housing material | PA |
| Sensing face | PA |
| Degree of protection | IP67 |
| Mass | - |
| Tightening torque | - |
