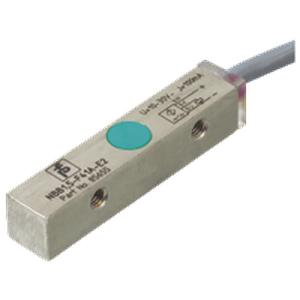

Pepperl Fuchs NBB1,5-F41A-E2: Inductive Sensors
Technical Specifications of Pepperl Fuchs Inductive Sensors NBB1,5-F41A-E2:
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Output type | 3-wire |
| Connection type | cable |
Pepperl Fuchs Inductive Sensors NBB1,5-F41A-E2 Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire |
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Assured operating distance | 0 ... 1.215 mm |
| Actual operating distance | - |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.35 |
| Reduction factor r304 | 0.75 |
| Nominal voltage | - |
| Switching frequency | 0 ... 1500 Hz |
| Hysteresis | typ. 3 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Current Consumption | - |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | - |
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 13.5 g |
| Tightening torque | - |
