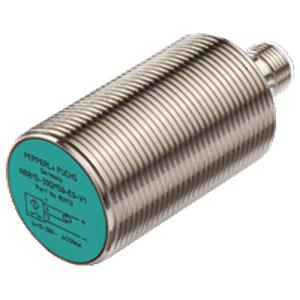

Home Products Proximity Sensor Pepperl Fuchs NBB15-30GM60-B3B-V1 Pepperl Fuchs NBB15-30GM60-B3B-V1 Proximity Sensor The Pepperl Fuchs NBB15-30GM60-B3B-V1 Proximity Sensor offers a 15 mm operating distance, 2-wire, Normally open/closed (NO/NC) programmable, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Type Proximity Sensor Model Number NBB15-30GM60-B3B-V1
Pepperl Fuchs NBB15-30GM60-B3B-V1 Proximity Sensor β Technical Specifications Specification Value Switching function Normally open/closed (NO/NC) programmable Output type 2-wire Rated operating distance 15 mm Installation flush Assured operating distance 0 ... 12.15 mm Switching frequency 0 ... 200 Hz Hysteresis 1 ... 15 % typ. 5 % Reverse polarity protection reverse polarity protected Switching state indicator dual-LED, yellow Ambient temperature -25 ... 70 Β°C (-13 ... 158 Β°F) Storage temperature -40 ... 85 Β°C (-40 ... 185 Β°F) Connection type Connector plug Housing material brass, nickel-plated Sensing face PBT Degree of protection IP67
