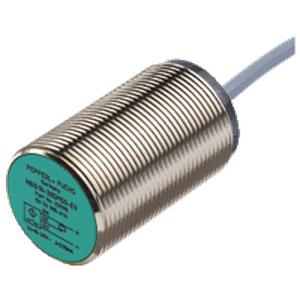

Pepperl Fuchs NBB15-30GM50-WS-10M Proximity Sensor
The Pepperl Fuchs NBB15-30GM50-WS-10M Proximity Sensor offers a 15 mm operating distance, 2-wire, , output, and quasi flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB15-30GM50-WS-10M |
Pepperl Fuchs NBB15-30GM50-WS-10M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Output type | 2-wire |
| Rated operating distance | 15 mm |
| Installation | quasi flush |
| Assured operating distance | 0 ... 12.15 mm |
| Switching frequency | 0 ... 20 Hz |
| Hysteresis | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 752 g |
