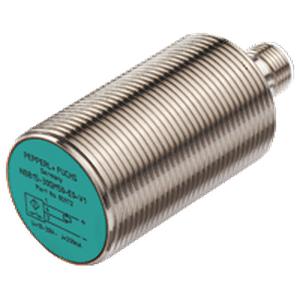

Pepperl Fuchs NBB15-30GM50-E1-V1-M Proximity Sensor
The Pepperl Fuchs NBB15-30GM50-E1-V1-M Proximity Sensor offers a 15 mm operating distance, 3-wire, PNP, Normally closed (NC), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB15-30GM50-E1-V1-M |
Pepperl Fuchs NBB15-30GM50-E1-V1-M Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally closed (NC) |
| Output type | 3-wire, PNP |
| Rated operating distance | 15 mm |
| Installation | flush |
| Assured operating distance | 0 ... 12.15 mm |
| Switching frequency | 0 ... 600 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | Multihole-LED, yellow |
| Ambient temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 3-pin |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP68 / IP69K |
| Mass | 94 g |
