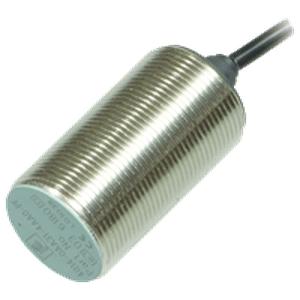

Pepperl Fuchs NBB10-30GM50-Z0-T Proximity Sensor
The Pepperl Fuchs NBB10-30GM50-Z0-T Proximity Sensor offers a 10 mm operating distance, 2-wire, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB10-30GM50-Z0-T |
Pepperl Fuchs NBB10-30GM50-Z0-T Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 2-wire |
| Rated operating distance | 10 mm |
| Installation | flush |
| Assured operating distance | 0 ... 8.1 mm |
| Switching frequency | 0 ... 300 Hz |
| Hysteresis | 0.05 ... 2.2 mm |
| Reverse polarity protection | reverse polarity-conductive |
| Short-circuit protection | no |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 100 Β°C (-13 ... 212 Β°F) |
| Storage temperature | -40 ... 100 Β°C (-40 ... 212 Β°F) |
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 145 g |
