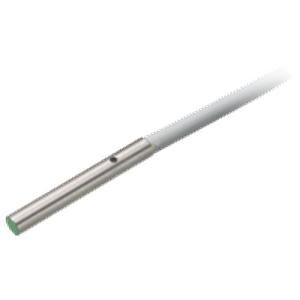

Pepperl Fuchs NBB1-3M22-E2-0,3M-V3 Proximity Sensor
The Pepperl Fuchs NBB1-3M22-E2-0,3M-V3 Proximity Sensor offers a 1 mm operating distance, 3-wire, PNP, Normally open (NO), output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NBB1-3M22-E2-0,3M-V3 |
Pepperl Fuchs NBB1-3M22-E2-0,3M-V3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 1 mm |
| Installation | flush |
| Assured operating distance | 0 ... 0.81 mm |
| Switching frequency | 0 ... 700 Hz |
| Hysteresis | typ. 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | fixed cable with plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PC |
| Degree of protection | IP67 |
| Mass | 12 g |
