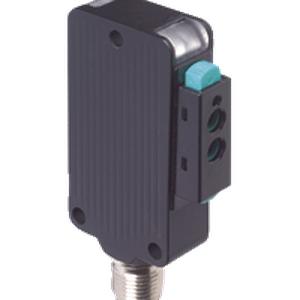

Pepperl Fuchs MLV41-LL-IR-IO/95/136 Fiber Optic Sensor

The Pepperl Fuchs MLV41-LL-IR-IO/95/136 Fiber Optic Sensor offers a on black (6 %): up to 55 mmon Kodak white, reflection factor 90% up to 160 mmwith LLR 04-1.6-0.5-WC3 fiberoptic cable sensor range, modulated infrared light , 880 nm light type, and M8 x 1 connector, 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Fiber Optic Sensor category.

Datasheet

Brand	Pepperl Fuchs
Product Type	Fiber Optic Sensor
Model number	MLV41-LL-IR-IO/95/136

Pepperl Fuchs MLV41-LL-IR-IO/95/136 Fiber Optic Sensor – Technical Specifications

Specification	Value
Sensor range	on black (6 %): up to 55 mmon Kodak white, reflection factor 90% up to 160 mmwith LLR 04-1.6-0.5-WC3 fiberoptic cable
Detection range	-
Light source	IRED
Light type	modulated infrared light , 880 nm
Ambient light limit	-
Operation indicator	LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) , IO link communication: green LED goes out briefly (1 Hz)
Function indicator	LED yellow, lights up with receiver lit ; flashes when falling short of the operating reserve
Operating voltage	10 ... 30 V DC
Switching type	light/dark on
Signal output	2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA
Voltage drop	≤ 2.5 V DC
Switching frequency	1000 Hz
Response time	0.5 ms
Repeat accuracy	-
Timer function	-
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 75 °C (-40 ... 167 °F)
Degree of protection	IP67
Connection	M8 x 1 connector, 4-pin
Mass	50 g
