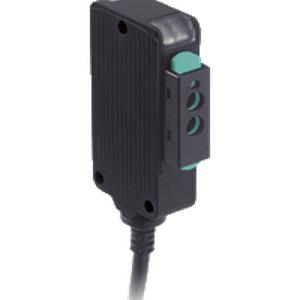

Pepperl Fuchs MLV41-LL-IR/115/136 Fiber Optic Sensor
The Pepperl Fuchs MLV41-LL-IR/115/136 Fiber Optic Sensor offers a on black (6 %): up to 55 mmon Kodak white, reflection factor 90% up to 160 mmwith LLR 04-1.6-0.5-WC3 fiberoptic cable sensor range, modulated infrared light , 880 nm light type, and 2 m fixed cable , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Fiber Optic Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Fiber Optic Sensor |
| Model number | MLV41-LL-IR/115/136 |
Pepperl Fuchs MLV41-LL-IR/115/136 Fiber Optic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensor range | on black (6 %): up to 55 mmon Kodak white, reflection factor 90% up to 160 mmwith LLR 04-1.6-0.5-WC3 fiberoptic cable |
| Detection range | - |
| Light source | IRED |
| Light type | modulated infrared light , 880 nm |
| Ambient light limit | - |
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) |
| Function indicator | LED yellow, lights up with receiver lit ; flashes when falling short of the operating reserve |
| Operating voltage | 10 ... 30 V DC |
| Switching type | light/dark on switchableThe switching modes specified in the "Electrical Connection" section apply to L/D switches in the "D" position (dark switch) |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | β€ 2.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Repeat accuracy | - |
| Timer function | - |
| Ambient temperature | -20 ... 60 Β°C (-4 ... 140 Β°F) |
| Storage temperature | -40 ... 75 Β°C (-40 ... 167 Β°F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable , 5-pin |
| Mass | 50 g |
