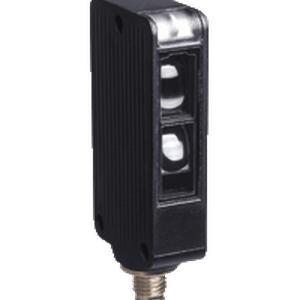

Home Products Photoelectric Sensor Pepperl Fuchs MLV41-55/40a/82b/92/103 Pepperl Fuchs MLV41-55/40a/82b/92/103 Photoelectric Sensor The Pepperl Fuchs MLV41-55/40a/82b/92/103 Photoelectric Sensor offers a 0 ... 8 m detection range, LED light source, and 4-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number MLV41-55/40a/82b/92/103
Pepperl Fuchs MLV41-55/40a/82b/92/103 Photoelectric Sensor β Technical Specifications Specification Value Effective detection range 0 ... 8 m Reflector distance 0.1 ... 8 m Threshold detection range 10 m Reference target H85-2 reflector Light source LED Light type modulated visible red light , 625 nm Polarization filter yes Diameter of the light spot approx. 300 mm at detection range 8.5 m Opening angle 1.5 Β° Optical face frontal Control elements rotary switch for light/dark Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current max. 30 mA Switching type light/dark on switchable Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current max. 100 mA Voltage drop β€ 2.5 V DC Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -40 ... 60 Β°C (-40 ... 140 Β°F) Storage temperature -40 ... 75 Β°C (-40 ... 167 Β°F) Degree of protection IP67 Connection 4-pin, M12 x 1 connector Mass 50 g Cable length -
