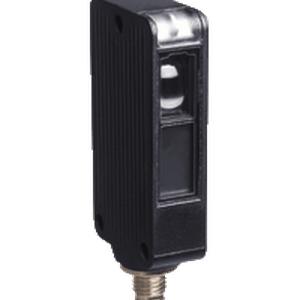

Home Products Photoelectric Sensor Pepperl Fuchs MLV41-54-G/82b/103/123/124 Pepperl Fuchs MLV41-54-G/82b/103/123/124 Photoelectric Sensor The Pepperl Fuchs MLV41-54-G/82b/103/123/124 Photoelectric Sensor offers a 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" detection range, LED light source, and 5-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number MLV41-54-G/82b/103/123/124
Pepperl Fuchs MLV41-54-G/82b/103/123/124 Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" Reflector distance 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" Threshold detection range 6.5 m Reference target H85-2 reflector Light source LED Light type modulated visible red light , 660 nm Polarization filter yes Diameter of the light spot approx. 100 mm at detection range 4 m Opening angle 1.5 ° Optical face - Control elements rotary switch for light/dark, 5-step switch for contrast recognition adjustment Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current max. 35 mA Switching type light/dark on switchable Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current max. 100 mA Voltage drop ≤ 2.5 V DC Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -40 ... 60 °C (-40 ... 140 °F) Storage temperature -40 ... 75 °C (-40 ... 167 °F) Degree of protection IP67 Connection 5-pin, M12 x 1 connector Mass 50 g Cable length -
