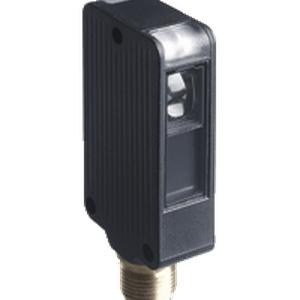

Pepperl Fuchs MLV41-54-G/102/123/124/126g Photoelectric Sensor
The Pepperl Fuchs MLV41-54-G/102/123/124/126g Photoelectric Sensor offers a 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" detection range, LED light source, and 5-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | MLV41-54-G/102/123/124/126g |
Pepperl Fuchs MLV41-54-G/102/123/124/126g Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" |
| Reflector distance | 0 ... 4 m in TEACH mode0 ... 5.2 m at switch position "N" |
| Threshold detection range | 6.5 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light , 660 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 100 mm at detection range 4 m |
| Opening angle | 1.5 Β° |
| Optical face | - |
| Control elements | rotary switch for light/dark, 5-step switch for contrast recognition adjustment |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | max. 35 mA |
| Switching type | light/dark on switchable |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | β€ 2.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -40 ... 60 Β°C (-40 ... 140 Β°F) |
| Storage temperature | -40 ... 75 Β°C (-40 ... 167 Β°F) |
| Degree of protection | IP67 |
| Connection | 5-pin, M12 x 1 connector |
| Mass | 50 g |
| Cable length | - |
