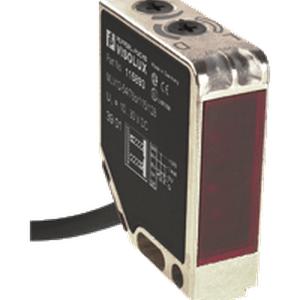

Home Products Photoelectric Sensor Pepperl Fuchs MLV12-54-LAS/76b/110/115 Pepperl Fuchs MLV12-54-LAS/76b/110/115 Photoelectric Sensor The Pepperl Fuchs MLV12-54-LAS/76b/110/115 Photoelectric Sensor offers a 0 ... 12 m detection range, laser diode light source, and 2500 mm fixed cable , PUR connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number MLV12-54-LAS/76b/110/115
Pepperl Fuchs MLV12-54-LAS/76b/110/115 Photoelectric Sensor β Technical Specifications Specification Value Effective detection range 0 ... 12 m Reflector distance 0 ... 12 m Threshold detection range 17 m Reference target MH82 reflector Light source laser diode Light type modulated visible red light Polarization filter yes Diameter of the light spot approx. 5 mm x 12 mm at 15 m detection range Opening angle 0.02 Β° Optical face - Control elements rotary switch for light/dark, sensitivity adjuster Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current max. 40 mA Switching type light/dark on switchable Signal output 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Switching voltage max. 30 V DC Switching current max. 0.1 A Voltage drop β€ 2.5 V DC Switching frequency 2500 Hz Response time 0.2 ms Ambient temperature -10 ... 50 Β°C (14 ... 122 Β°F) Storage temperature -20 ... 65 Β°C (-4 ... 149 Β°F) Degree of protection IP67 Connection 2500 mm fixed cable , PUR Mass 60 g Cable length -
