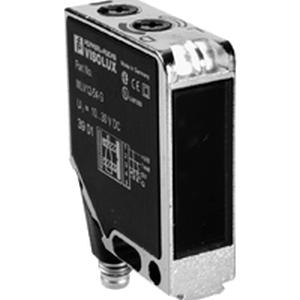

Pepperl Fuchs MLV12-54-G/76b/95/128 Photoelectric Sensor
The Pepperl Fuchs MLV12-54-G/76b/95/128 Photoelectric Sensor offers a 0 ... 4.2 m detection range, LED light source, and 4-pin M8 metal connector, 90° rotatable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | MLV12-54-G/76b/95/128 |
Pepperl Fuchs MLV12-54-G/76b/95/128 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 4.2 m |
| Reflector distance | 0 ... 4.2 m |
| Threshold detection range | 5.6 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light , 660 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 110 mm at detection range 4.2 m |
| Opening angle | 1.5 ° |
| Optical face | - |
| Control elements | rotary switch for light/dark, 5-step switch for contrast recognition adjustment |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | max. 55 mA |
| Switching type | light/dark on switchable |
| Signal output | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 0.2 A |
| Voltage drop | ≤ 2.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 75 °C (-40 ... 167 °F) |
| Degree of protection | IP67 |
| Connection | 4-pin M8 metal connector, 90° rotatable |
| Mass | 60 g |
| Cable length | - |
