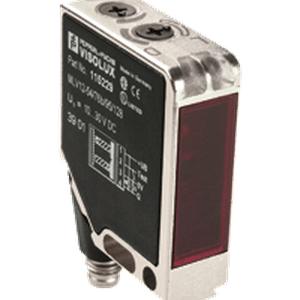

Home Products Photoelectric Sensor Pepperl Fuchs MLV12-54/76b/95/128 Pepperl Fuchs MLV12-54/76b/95/128 Photoelectric Sensor The Pepperl Fuchs MLV12-54/76b/95/128 Photoelectric Sensor offers a 0 ... 6.5 m detection range, LED light source, and 4-pin M8 metal connector, 90Β° rotatable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number MLV12-54/76b/95/128
Pepperl Fuchs MLV12-54/76b/95/128 Photoelectric Sensor β Technical Specifications Specification Value Effective detection range 0 ... 6.5 m Reflector distance 0.01 ... 6.5 m Threshold detection range 9 m Reference target H85-2 reflector Light source LED Light type modulated visible red light , 660 nm Polarization filter yes Diameter of the light spot approx. 170 mm at detection range 6.5 m Opening angle 1.5 Β° Optical face - Control elements rotary switch for light/dark, sensitivity adjuster Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current max. 40 mA Switching type light/dark on switchable Signal output 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Switching voltage max. 30 V DC Switching current max. 0.2 A Voltage drop β€ 2.5 V DC Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -40 ... 60 Β°C (-40 ... 140 Β°F) Storage temperature -40 ... 75 Β°C (-40 ... 167 Β°F) Degree of protection IP67 Connection 4-pin M8 metal connector, 90Β° rotatable Mass 60 g Cable length -
