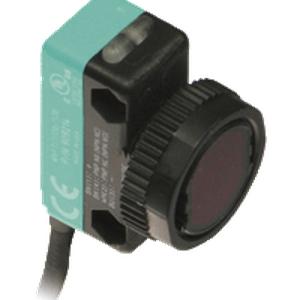

Pepperl Fuchs ML17-54/33/115/136-5M Photoelectric Sensor
The Pepperl Fuchs ML17-54/33/115/136-5M Photoelectric Sensor offers a 0 ... 3.5 m detection range, LED light source, and 5 m cable, fixed installation connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | ML17-54/33/115/136-5M |
Pepperl Fuchs ML17-54/33/115/136-5M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 3.5 m |
| Reflector distance | 50 ... 3500 mm |
| Threshold detection range | 5 m |
| Reference target | FE-RR1 reflector |
| Light source | LED |
| Light type | modulated visible red light , 626 nm |
| Polarization filter | yes |
| Diameter of the light spot | - |
| Opening angle | - |
| Optical face | - |
| Control elements | sensitivity adjustment |
| Operating voltage | 10 ... 30 V DC , class 2 |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA |
| Switching type | light/dark on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | β€ 2 V DC |
| Switching frequency | 500 Hz |
| Response time | β€ 1 ms |
| Ambient temperature | -20 ... 55 Β°C (-4 ... 131 Β°F) |
| Storage temperature | -20 ... 70 Β°C (-4 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 5 m cable, fixed installation |
| Mass | approx. 95 g |
| Cable length | - |
