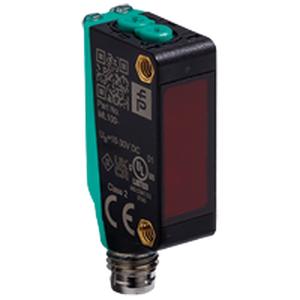

Pepperl Fuchs ML100-8-H-350-RT/95/102 Photoelectric Sensor
The Pepperl Fuchs ML100-8-H-350-RT/95/102 Photoelectric Sensor offers a 5 ... 350 mm detection range, LED light source, and Connector M8 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the diffuse mode sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | ML100-8-H-350-RT/95/102 |
Pepperl Fuchs ML100-8-H-350-RT/95/102 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Detection range | 5 ... 350 mm |
| Adjustment range | 30 ... 350 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | no |
| Diameter of the light spot | approx. 20 mm at a distance of 350 mm |
| Opening angle | approx. 4 Β° |
| Optical face | frontal |
| Operation indicator | LED green: power on |
| Function indicator | LED yellow: lights when object is detected |
| Control elements | Light-on/dark-on changeover switch |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Ambient temperature | -30 ... 60 Β°C (-22 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | Connector M8 x 1 , 4-pin |
| Mass | approx. 10 g |
| Tightening torque, fastening screws | 0.6 Nm |
| Detection range min. | 5 ... 30 mm |
| Detection range max. | 5 ... 350 mm |
| Background suppression | - |
