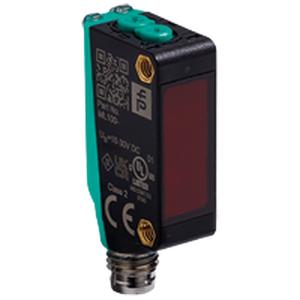

Pepperl Fuchs ML100-6-IR/102/115 Photoelectric Sensor
The Pepperl Fuchs ML100-6-IR/102/115 Photoelectric Sensor offers a 0 ... 5 m detection range, IRED light source, and fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | ML100-6-IR/102/115 |
Pepperl Fuchs ML100-6-IR/102/115 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 5 m |
| Reflector distance | 0.01 ... 5 m |
| Threshold detection range | 7 m |
| Reference target | H50 reflector |
| Light source | IRED |
| Light type | modulated infrared light |
| Polarization filter | no |
| Diameter of the light spot | approx. 500 mm at a distance of 7 m |
| Opening angle | approx. 4 Β° |
| Optical face | frontal |
| Control elements | Light-on/dark-on changeover switch |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -30 ... 60 Β°C (-22 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | fixed cable |
| Mass | approx. 50 g |
| Cable length | 2 m |
