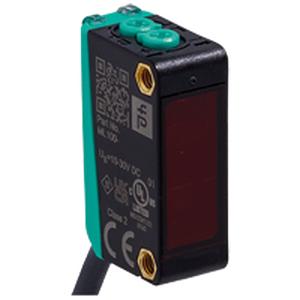

Pepperl Fuchs ML100-55-8943/120/115b-0,8M Photoelectric Sensor
The Pepperl Fuchs ML100-55-8943/120/115b-0,8M Photoelectric Sensor offers a 0 ... 5 m detection range, LED light source, and 800 mm fixed cable with 4-pin, right-angled, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | ML100-55-8943/120/115b-0,8M |
Pepperl Fuchs ML100-55-8943/120/115b-0,8M Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 5 m |
| Reflector distance | 0.02 ... 5 m |
| Threshold detection range | 7 m |
| Reference target | H50 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 500 mm at a distance of 7 m |
| Opening angle | approx. 4 ยฐ |
| Optical face | frontal |
| Control elements | Light-on/dark-on changeover switch |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA |
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP normally closed / light-on /Q - Pin2: PNP normally open / dark-on |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | โค 1.5 V DC |
| Switching frequency | 1000 Hz |
| Response time | 0.5 ms |
| Ambient temperature | -30 ... 60 ยฐC (-22 ... 140 ยฐF) |
| Storage temperature | -40 ... 70 ยฐC (-40 ... 158 ยฐF) |
| Degree of protection | IP67 |
| Connection | 800 mm fixed cable with 4-pin, right-angled, M12 x 1 connector |
| Mass | approx. 30 g |
| Cable length | 0.8 m |
