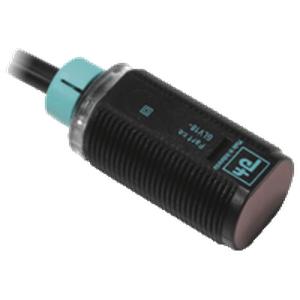

Home Products Photoelectric Sensor Pepperl Fuchs ML100-55/103/115 Pepperl Fuchs ML100-55/103/115 Photoelectric Sensor The Pepperl Fuchs ML100-55/103/115 Photoelectric Sensor offers a 0 ... 5 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number ML100-55/103/115
Pepperl Fuchs ML100-55/103/115 Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 5 m Reflector distance 0.02 ... 5 m Threshold detection range 7 m Reference target H50 reflector Light source LED Light type modulated visible red light Polarization filter yes Diameter of the light spot approx. 500 mm at a distance of 7 m Opening angle approx. 4 ° Optical face frontal Control elements Light-on/dark-on changeover switch Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current < 20 mA Switching type The switching type of the sensor is adjustable. The default setting is: light-on Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current max. 100 mA , resistive load Voltage drop ≤ 1.5 V DC Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -30 ... 60 °C (-22 ... 140 °F) Storage temperature -40 ... 70 °C (-40 ... 158 °F) Degree of protection IP67 Connection 2 m fixed cable Mass approx. 50 g Cable length 2 m
