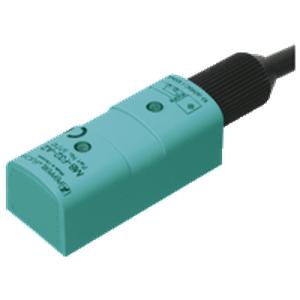

Pepperl Fuchs MB-F32-A2: Magnetic Field Sensor
Technical Specifications of Pepperl Fuchs Magnetic Field Sensor MB-F32-A2:
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | MB-F32-A2 |
Pepperl Fuchs Magnetic Field Sensor MB-F32-A2 Technical Specifications
| Specification | Value |
|---|---|
| Switching function | complementary |
| Output type | 4-wire |
| Rated operating distance | - |
| Installation | on the cylinder |
| Output polarity | DC |
| Assured operating distance | - |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | - |
| Hysteresis | - |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | β€ 1.5 V |
| Operating current | 0 ... 100 mA |
| No-load supply current | β€ 30 mA |
| Switching state indicator | - |
| Ambient temperature | -25 ... 85 Β°C (-13 ... 185 Β°F) |
| Connection type | cable |
| Housing material | Polyamide (PA) |
| Sensing face | Polyamide (PA) |
| Degree of protection | IP67 |
| LED indication | red: switching state output 1yellow: switching state output 2 |
| Switching range | typ. 50 mm |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
